1 特性
- 穩健的 5W 解決方案，熱損耗降低 50%，從而提高熱性能
- 針對最薄解決方案的無電感器接收器
- 可調節輸出電壓（4.5 至 8V），以實現線圈和熱性能優化
- 效率高達 96% 的完全同步整流器
- 后置調節器的效率達 97%
- 5 W 時系統效率達 79%
- 與 WPC v1.2 和 PMA 標準兼容的通信
- 已獲專利的發送器焊盤檢測功能提升了用戶體驗
- 與主機進行I2C通信
2 應用范圍
- 智能手機、平板電腦和頭戴式耳機
- Wi-Fi 熱點
- 移動電源
- 其他手持式器件
3 說明
bq51222 器件是一款裝備齊全的無線電源接收器，此接收器能夠以無線充電聯盟 (WPC) Qi 和電源事物聯盟 (PMA) 協議運行，這使得無線電源系統滿足這兩種感應充電標準。bq51222 器件提供針對這兩種標準的單器件電源轉換（整流和穩壓）以及數字控制和通信。它還具有協議自主檢測功能，并且無需額外的有源器件。bq51222 器件符合 WPC v1.2 和 PMA 通信協議。與 WPC 或 PMA 一次側控制器搭配使用時，bq51222 器件可為無線電源解決方案實現一套完整的無線電源傳輸系統。此接收器可采用市場領先的封裝、效率和解決方案實現同步整流、穩壓和控制與通信。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（最大值） |
|---|---|---|
| bq51222 | DSBGA (42) | 3.586mm x 2.874mm |
- 要了解所有可用封裝，請參見數據表末尾的可訂購產品附錄。
空白

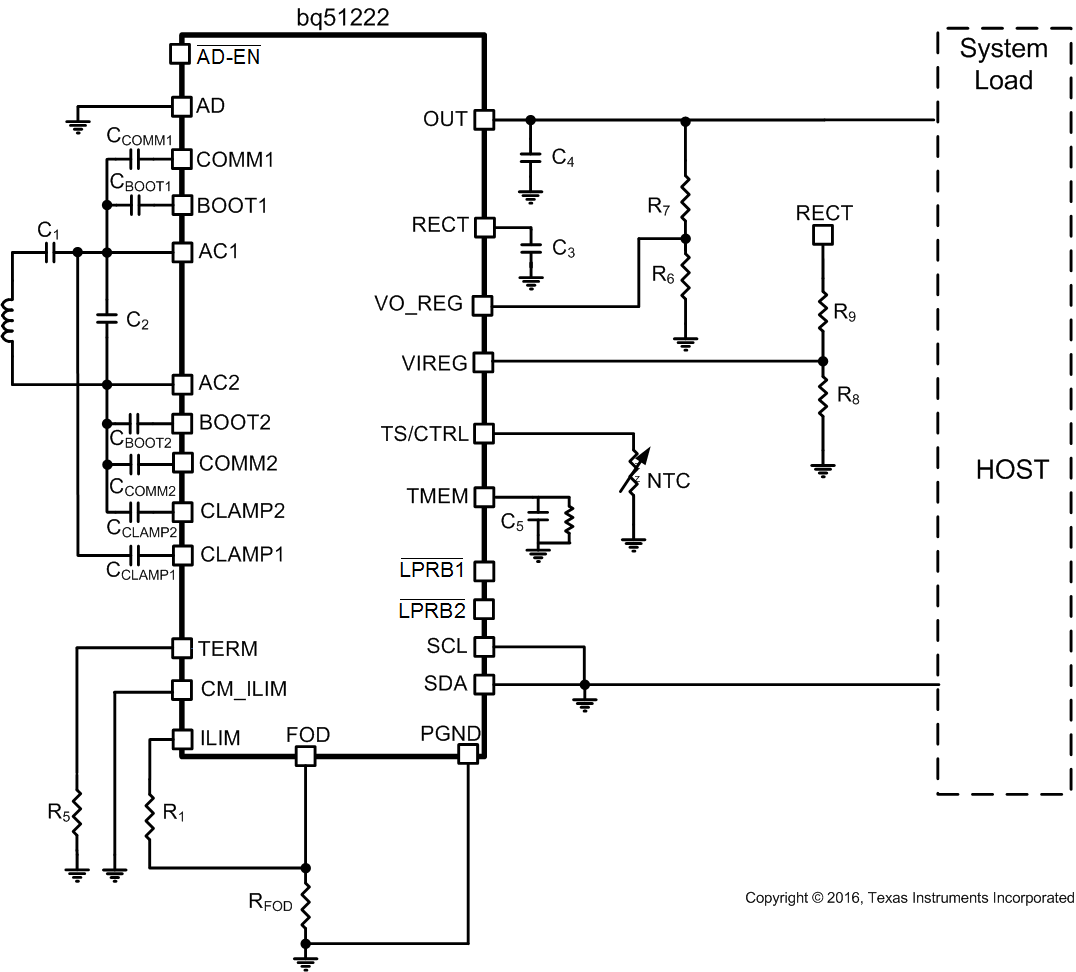

簡化原理圖

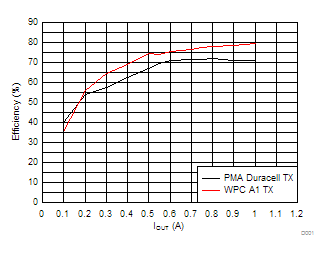

雙路模式效率（5V 輸出）
