1 特性
- 集成 26mΩ 和 19mΩ 金屬氧化物半導體場效應晶體管 (MOSFET)
- 分離電源軌：1.6V 至 17V (PVIN)
- 開關頻率：200kHz 至 1.6MHz
- 跳脈沖模式提高輕載效率
- 與外部時鐘同步
- 0.6V ±1% 電壓基準過熱保護
- 關斷時的靜態電流低至 2µA
- 單啟動至預偏置輸出
- -40°C 至 150°C 工作結溫范圍
- 可調慢啟動和電源排序
- 針對欠壓及過壓提供電源良好輸出監控器
- 可調節輸入欠壓鎖定
- 使用 TPS54623 并借助 WEBENCH® 電源設計器創建定制設計方案
2 應用
- 高密度分布式電源系統
- 高性能點的負載調整
- 寬帶、網絡及光纖通信基礎設施

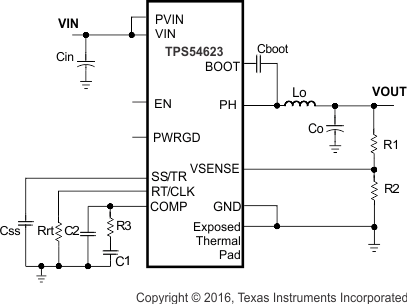

簡化電路原理圖
3 說明
TPS54623 采用熱增強型 VQFN 封裝，是一款功能齊全的 17V 6A 同步降壓轉換器；該器件具有高效率且集成了高側和低側 MOSFET的特點，針對小型設計進行了優化。通過電流模式控制減少組件數量，并通過選擇高開關頻率縮小電感器尺寸來進一步節省空間。
輸出電壓?jiǎn)?dòng)斜坡由 SS/TR 引腳控制，該引腳既支持獨立電源運行，又支持跟蹤模式。此外，正確配置使能和開路電源正常引腳也可進行電源定序。
高側 FET 的逐周期電流限制可在過載情況下保護器件，并通過低側拉電流限制防止電流失控，增強限制效果。此外，還提供可關閉低側 MOSFET 的低側灌電流限制，防止反向電流過大。在過流情況持續時間超過預設時間時，將觸發斷續保護功能。當裸片溫度超過熱關斷溫度時，熱斷續保護功能將禁用該器件，并在內置熱關斷斷續時間后重新啟用該部件。TPS54623 可在較高負載條件下始終以持續電流模式 (CCM) 運行，并且能夠在跳過脈沖時提升輕載效率。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| TPS54623 | VQFN (14) | 3.50mm x 3.50mm |
- 如需了解所有可用封裝，請參閱產品說明書末尾的可訂購產品附錄。
效率與負載電流間的關系
4 修訂歷史記錄
Changes from B Revision (January 2017) to C Revision
- Added TI Design 頂部導航圖標Go
- Added 頁面 1、應用和實施以及器件和文檔支持部分中的 WEBENCH 鏈接Go
- 細微編輯變更Go
- Changed RθJA value from "47.2" to "40.1" Go
- Changed RθJCtop value from "64.8" to "34.4" Go
- RθJB value from "14.4" to "11.4" Go
- Changed ψJB value from "14.7" to "11.4" Go
- Changed RθJCbot value from "3.2" to "1.8" Go
- Added new paragraph to end of Sequencing (SS/TR) Go
Changes from A Revision (March 2016) to B Revision
- Changed Error amplifier dc gain test conditions, VSENSE from 0.8 V to 0.6 V Go
- Changed the voltage reference (Vref) from 0.8 V to 0.6 V in Slow Start (SS/TR) description. Go
- Changed "..internal voltage reference of 0.8 V. Above 0.8 V.." to "..internal voltage reference of 0.6 V. Above 0.6 V..." in Minimum Output Voltage description.Go
Changes from * Revision (September 2011) to A Revision
