11 Layout
11.1 Layout Guidelines
- DAC output termination should be placed as close as possible to outputs.
- Keep routing for RBIAS short.
- Decoupling capacitors should be placed as close as possible to supply pins.
- Digital differential inputs must be 50 Ω to ground loosely coupled, or 100-Ω differential tightly coupled.
- Digital differential inputs must be length matched.

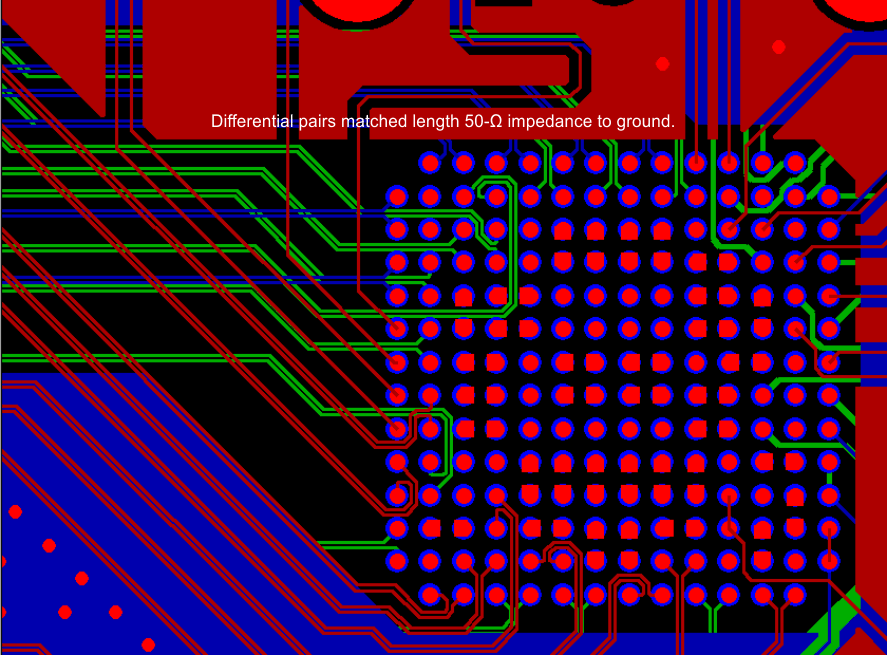

11.2 Layout Example
