4 Pin Configuration and Functions

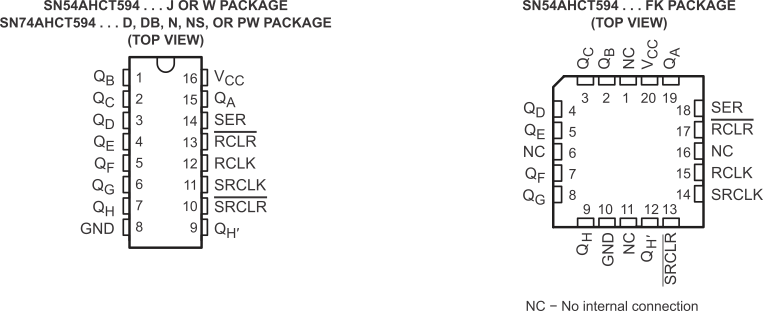

Figure 4-1 | PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NO. | NAME | ||
| 1 | QB | O | Output B |
| 2 | QC | O | Output C |
| 3 | QD | O | Output D |
| 4 | QE | O | Output E |
| 5 | QF | O | Output F |
| 6 | QG | O | Output G |
| 7 | QH | O | Output H |
| 8 | GND | — | Ground Pin |
| 9 | QH' | I | QH inverted |
| 10 | SRCLR | I | Serial Clear |
| 11 | SRCLK | I | Serial Clock |
| 12 | RCLK | I | Storage Clock |
| 13 | RCLR | I | Storage Clear |
| 14 | SER | I | Serial Input |
| 15 | QA | O | Output A |
| 16 | VCC | — | Power pin |
