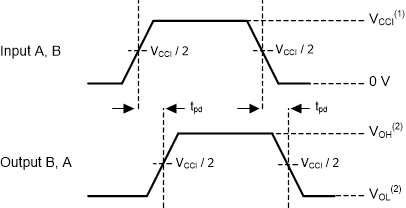

7.1 Load Circuit and Voltage Waveforms

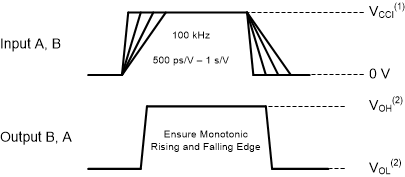

Unless otherwise noted, all input pulses are supplied by generators having the following characteristics:
- f = 1 MHz
- ZO = 50 Ω
- Δt/ΔV ≤ 1 ns/V
- CL includes probe and jig capacitance.

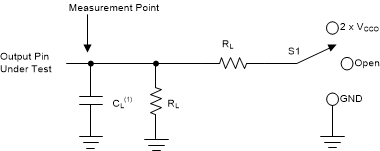

Table 7-1 Load Circuit Conditions
| Parameter | VCCO | RL | CL | S1 | VTP | |
|---|---|---|---|---|---|---|
| tpd | Propagation (delay) time | 1.1 V – 5.5 V | 2 kΩ | 15 pF | Open | N/A |
- VCCI is the supply pin associated with the input port.
- VOH and VOL are typical output voltage levels that occur with specified RL, CL, and S1
- VCCI is the supply pin associated with the input port.
- VOH and VOL are typical output voltage levels that occur with specified RL, CL, and S1
