3 說明
TDP158 器件是一款交流耦合型 HDMI 信號轉最小化傳輸差分信號 (TMDS) 轉接驅動器，支持?jǐn)?shù)字視頻接口 (DVI) 1.0 和高清多媒體接口 (HDMI) 1.4b 和 2.0b 輸出信號。TDP158 支持四條 TMDS 通道和數字顯示控制 (DDC) 接口。TDP158 支持高達 6Gbps 的信號傳輸速率，可實現高達 4k 2k 60p 24 位/像素的分辨率以及高達 WUXGA 16 位色深或 1080p，同時具有較高的刷新率。TDP158 經配置可支持 HDMI2.0 標準。
TDP158 支持雙電源軌
（VDD 為 1.1V，VCC 為 3.3V），有助于降低功耗。該器件采用多種電源管理方法降低整體功耗。TDP158 通過 I2C 或引腳配置 (strap) 支持固定接收器 EQ 增益，從而補償長度不同的輸入電纜或電路板引線。
(1) 有關更多信息，請參閱節 11
(2) 封裝尺寸（長 × 寬）為標稱值，并包括引腳（如適用）。

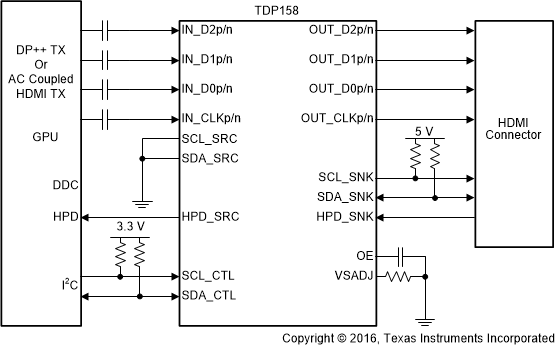

簡化原理圖
顯示
