11 Layout
11.1 Layout Guidelines
For best performance, VIN, VOUT, and GND traces must be as short and wide as possible to help minimize the parasitic electrical effects. To be most effective, the input and output capacitors must be placed close to the device to minimize the effects that parasitic trace inductances may have on normal operation.
11.2 Layout Example

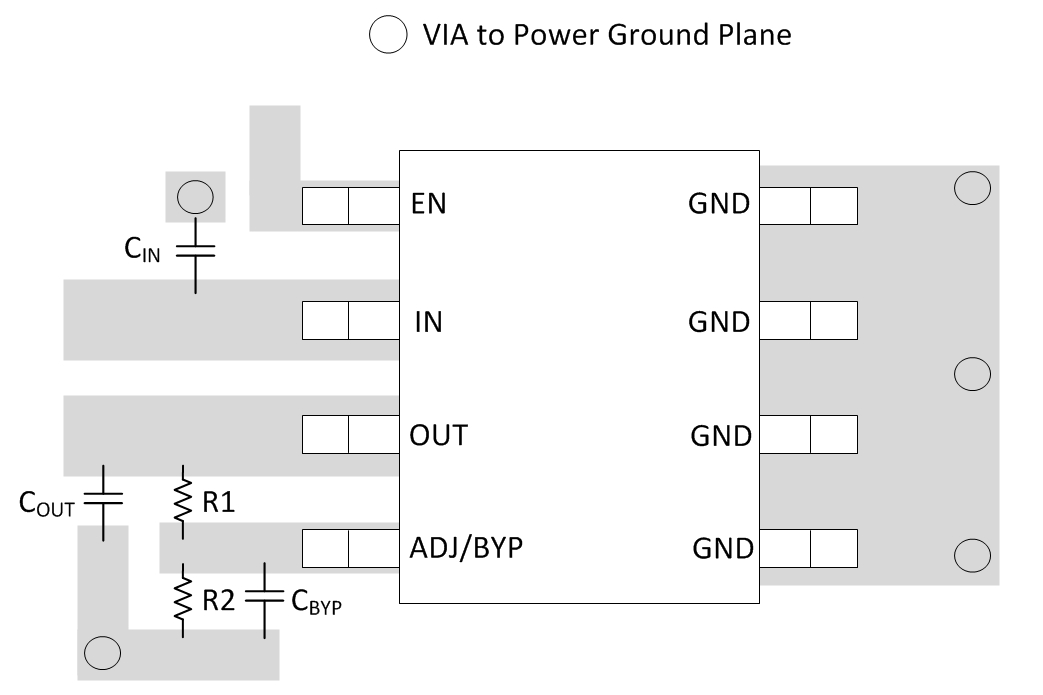

Figure 42. TL5209 Layout Schematic
