ZHCSJP4B May 2019 – October 2019 TLV320ADC3140
PRODUCTION DATA.
請(qǐng)參考 PDF 數(shù)據(jù)表獲取器件具體的封裝圖。
The device has many supported features and flexible options that can be used in the system to seamlessly connect multiple TLV320ADC3140 devices by sharing a single common I2C control bus and an audio serial interface bus. This architecture enables multiple applications to be applied to a system that require a microphone array for beam-forming operation, audio conferencing, noise cancellation, and so forth. Figure 29 shows a diagram of multiple TLV320ADC3140 devices in a configuration where the control and audio data buses are shared.

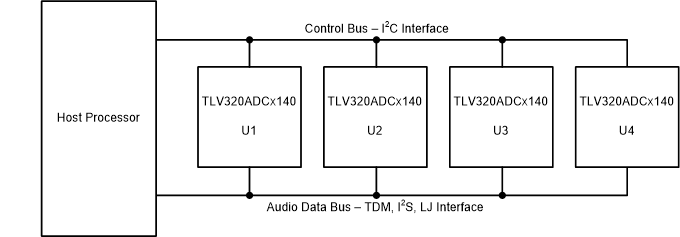

Figure 29. Multiple TLV320ADC3140 Devices With Shared Control and Audio Data Buses The TLV320ADC3140 consists of the following features to enable seamless connection and interaction of multiple devices using a shared bus:
