8.2.3 Application Curves
Figure 8-2 through Figure 8-15 apply to the circuit of Figure 8-1. VIN = 12 V. TJ = 25°C unless otherwise specified.

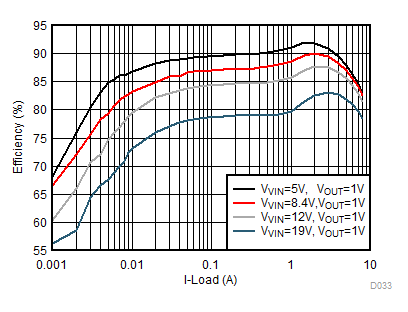

Figure 8-2 Efficiency Curve, Fsw = 600 kHz
| IOUT = 8 A |

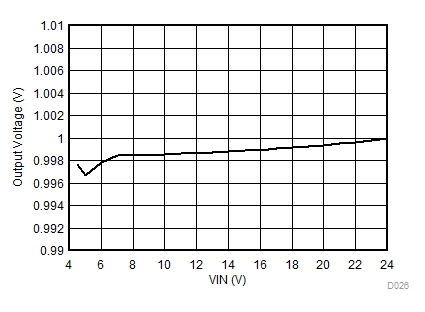

Figure 8-6 Line
Regulation,IOUT = 0.01 A

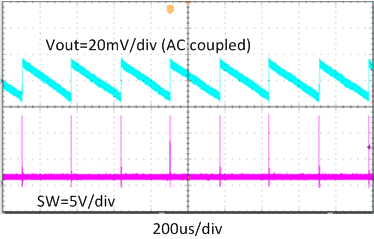

Figure 8-8 Output Voltage Ripple,
IOUT = 0.01 A

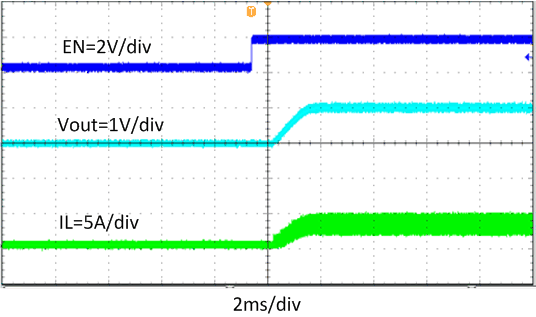

Figure 8-10 Start-Up Through EN, IOUT = 4A

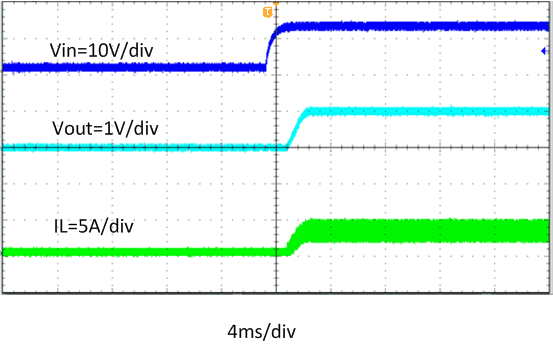

Figure 8-12 Start
Up Relative to VIN Rising, IOUT = 4 A

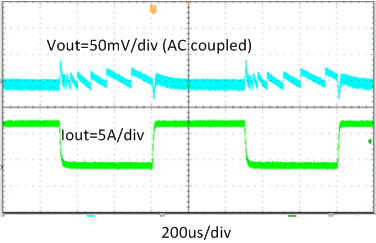

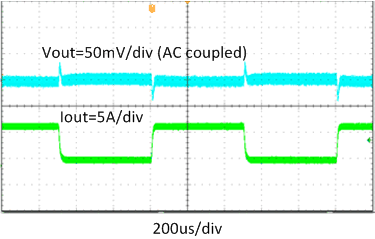

| Slew Rate=2.5A/us |

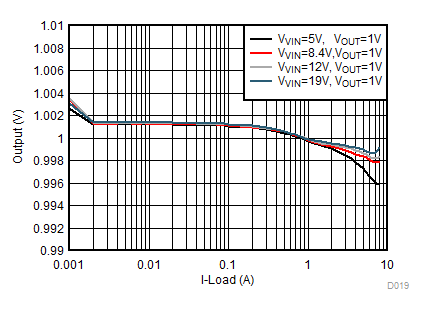

Figure 8-3 Load
Regulation ,Fsw = 600 kHz

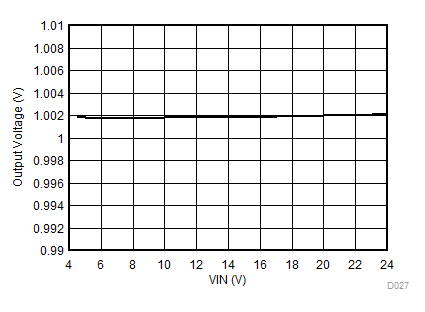

Figure 8-7 Line
Regulation,IOUT = 8 A

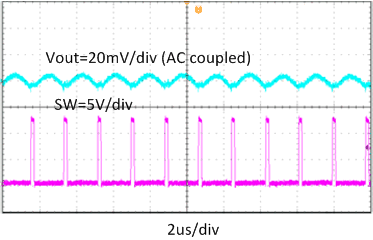

Figure 8-9 Output Voltage Ripple,
IOUT = 8 A

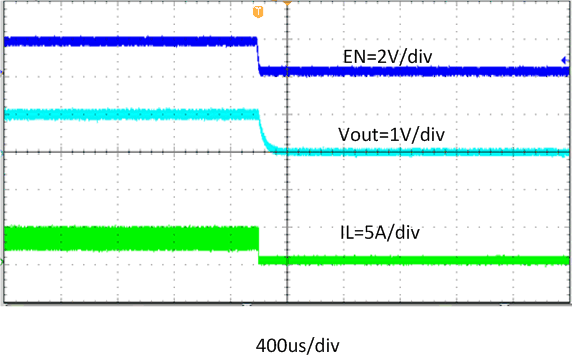

Figure 8-11 Shut-down Through EN, IOUT = 4A

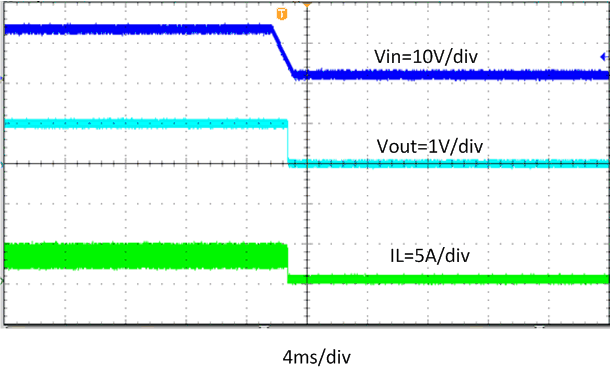

Figure 8-13 Start
Up Relative to VIN Falling, IOUT = 4 A
| Slew Rate=2.5A/us |
