3 說明
TPS65987D 是獨立的 USB Type-C 和功率傳輸 (PD) 控制器，可為單個 USB Type-C 接口提供線纜插頭連接狀態和方向檢測。進行線纜檢測時，TPS65987D 會使用 USB PD 協議在 CC 線路上進行通信。在線纜檢測和 USB PD 協商完成后，TPS65987D 會啟用合適的電源路徑并為外部多路復用器配置交替模式設置。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| TPS65987D | QFN (RSH56) | 7.00mm x 7.00mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

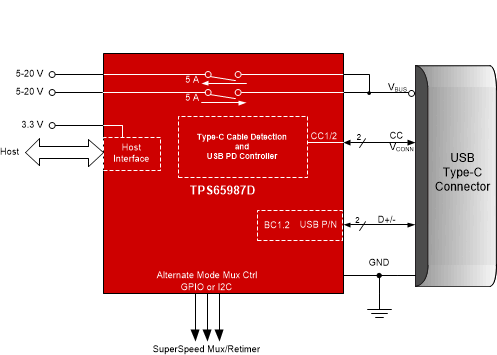

簡化版原理圖
