7.3.15 Thermal Performance

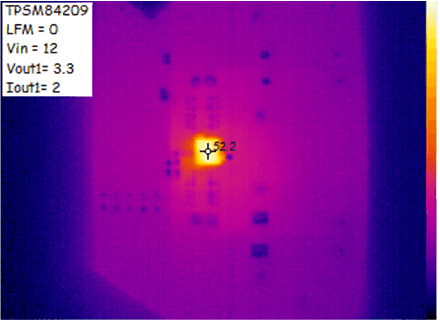

The typical thermal performance of the TPSM84209 is shown in Figure 30. The thermal image shows the typical temperature rise of TPSM84209 is 27.2°C above ambient when operated at VIN = 12 V, VOUT = 3.3 V, IOUT = 2 A, with no airflow (LFM = 0).
| TA = 25°C |
