ZHCS141E August 2011 – Oct 2019 TS3DS10224
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Electrical Characteristics: Differential 1:4 or 2?Channel 1:2 Configurations
- 6.6 Electrical Characteristics: Fan-Out 1:2 Configurations
- 6.7 Switching Characteristics: Differential 1:4 or 2?Channel 1:2 Configurations
- 6.8 Switching Characteristics: Fan-Out 1:2 Configurations
- 6.9 Dynamic Characteristics: Differential 1:4 or 2?Channel 1:2 Configurations
- 6.10 Dynamic Characteristics: Fan-Out 1:2 Configurations
- 6.11 Typical Characteristics
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12器件和文檔支持
- 13機械、封裝和可訂購信息
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- RUK|20
散熱焊盤機械數據 (封裝 | 引腳)
- RUK|20
訂購信息
7 Parameter Measurement Information

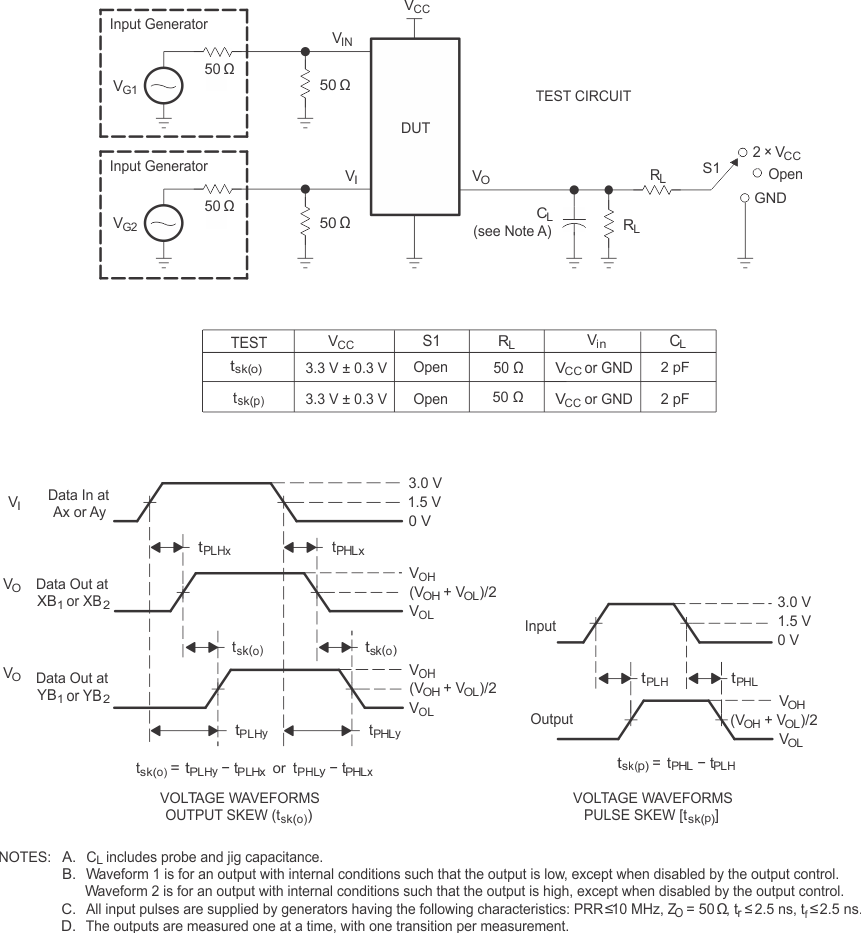

Figure 9. Test Circuit and Voltage Waveforms

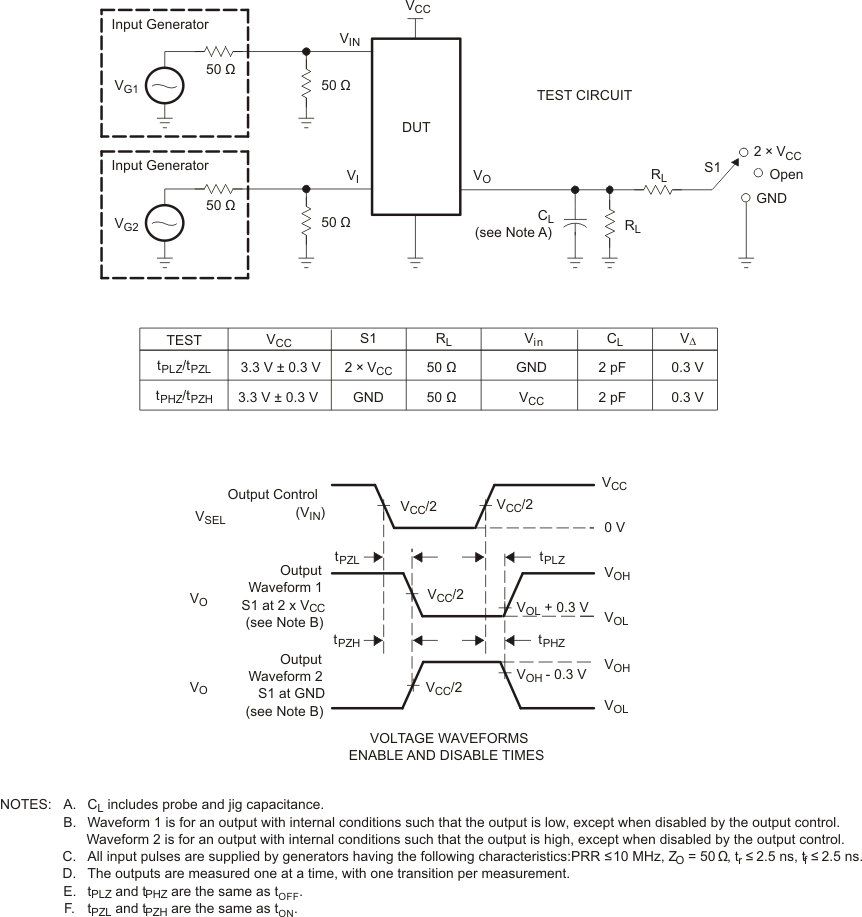

Figure 10. Test Circuit and Voltage Waveforms

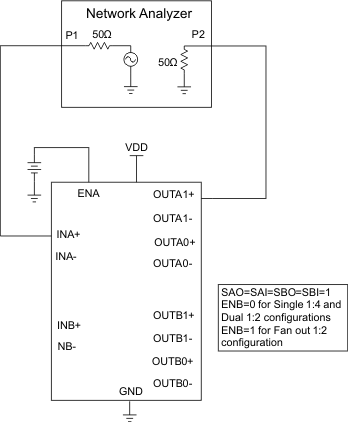

Figure 11. Frequency Response (BW)

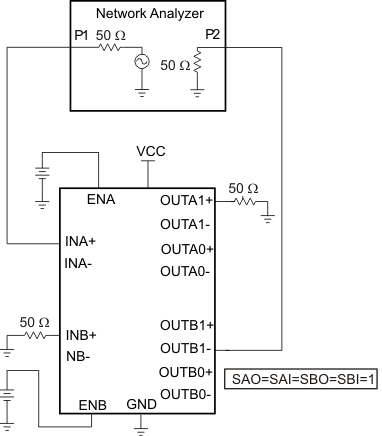

Figure 13. Crosstalk (XTALK)

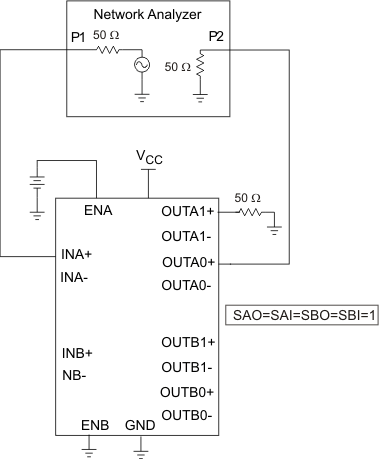

Figure 12. Off Isolation (OISO)
