3 說明
TUSB8040A1 是一款符合 USB 3.0 標準的四端口集線器，采用 100 引腳 WQFN 封裝。此器件被設計用于 0°C 至 70°C 商用溫度范圍內的運行。
TUSB8040A1 在上行端口上可提供同步超快速 USB 和高速或全速連接，在下行端口上可提供超快速 USB、高速、全速或者低速連接。當上行端口被連接到一個只支持高速、全速或低速連接的電氣環境中時，下行端口上的超快速 USB 連接被禁用。當上行端口被連接到一個只支持全速或低速連接的電氣環境中時，下行端口上的超快速 USB 和高速連接被禁用。
TUSB8040A1 支持多達四個下行端口?？赏ㄟ^(guò)引腳選擇或者通過連接 EEPROM 或 SMBus 控制器將器件配置為報告一個至四個下行端口。這些配置選項能夠根據應用來調整器件。
圖 8-1 展示了 TUSB8040A1 的典型視圖。
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。
(2) 封裝尺寸（長 x 寬）為標稱值，并包括引腳（如適用）。

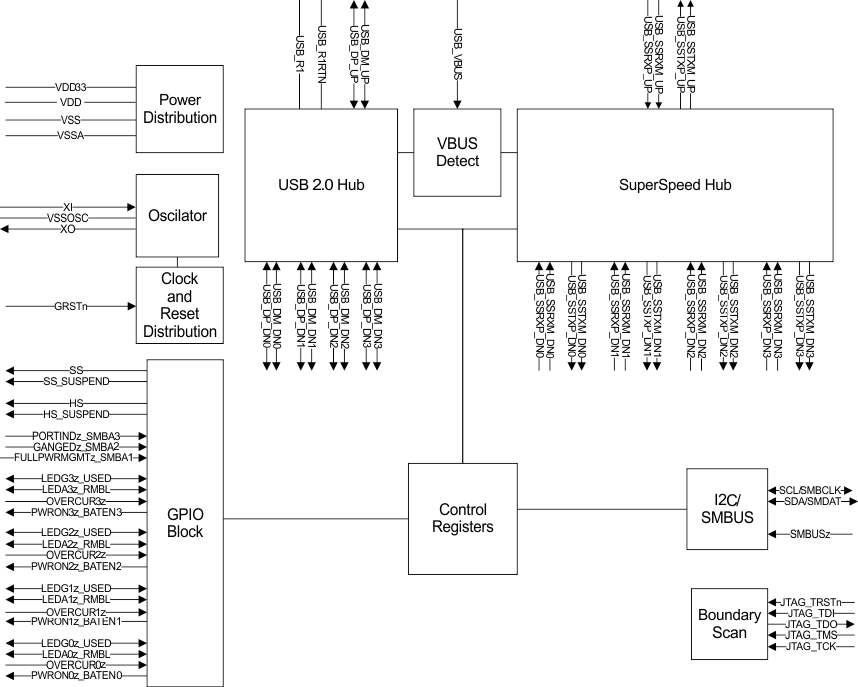

功能方框圖
