3 說明
UCC28740-Q1 隔離式反激電源控制器可使用光耦合器調節輸出，以提供對大型負載階躍的快速瞬態響應。
內部采用 700V 啟動開關，可動態控制工作狀態并定制調制配置文件，支持超低待機功耗，并且不會影響啟動時間或輸出瞬態響應。
UCC28740-Q1 中的控制算法可使操作效率達到或超過適用標準。驅動輸出接至一個 MOSFET 電源開關。帶有谷值開關的斷續傳導模式 (DCM) 減少了開關損耗。開關頻率的調制和初級電流峰值振幅（FM 和 AM）在整個負載和線路范圍內保持較高的轉換效率。
此控制器有一個 100kHz 的最大開關頻率并且一直保持對變壓器內峰值初級電流的控制。保護特性可抑制初級和次級應力分量。170kHz 的最小開關頻率可輕松實現少于 10mW 無負載功耗。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| UCC28740-Q1 | SOIC (7) | 4.90mm × 3.91mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

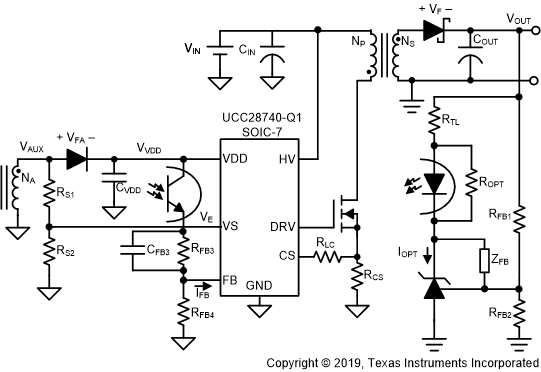

簡化版應用示意圖

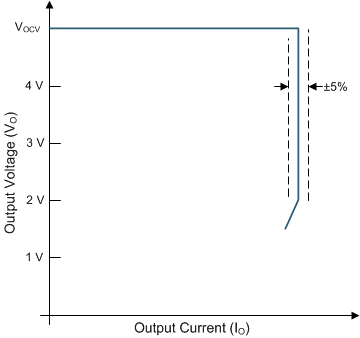

典型伏安圖
