4.9 Start-Up

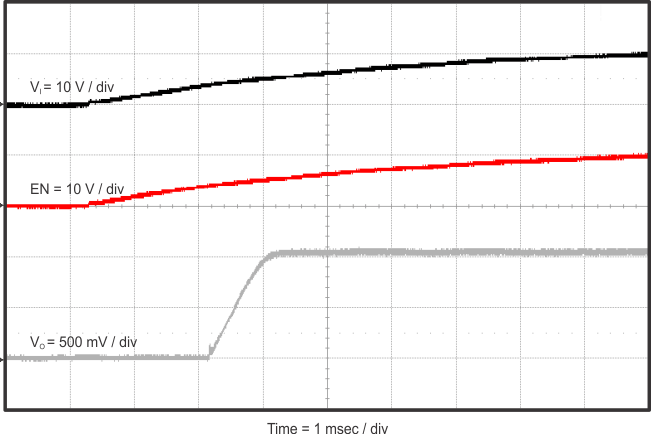

The TPS563209EVM-652 start-up waveform relative to VIN is shown in Figure 4-10. Load = 1 Ω resistive.

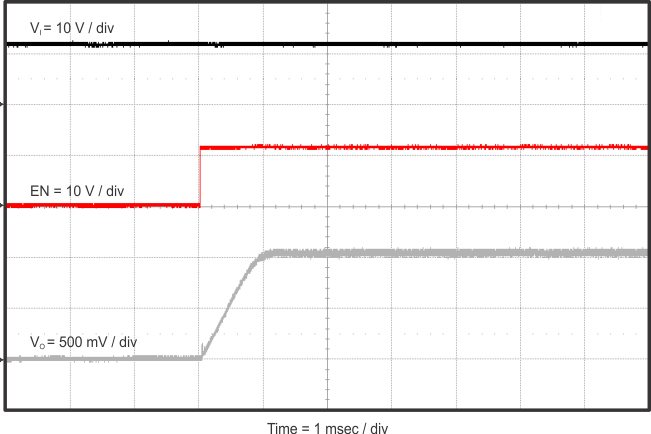

Figure 4-10 TPS563209EVM-652 Start-Up Relative to VINThe TPS563209EVM-652 start-up waveform relative to enable (EN) is shown in Figure 4-11. Load = 1 Ω resistive.
Figure 4-11 TPS563209EVM-652 Start-Up Relative to EN
