11 Layout
11.1 Layout Guidelines
- All Power Supply terminals should be bypassed to ground with a low ESR ceramic bypass capacitor. The typical recommended bypass capacitance is 10-µF ceramic with a X7R or NP0 dielectric.
- To minimize interaction between the analog and digital return currents, the digital and analog sections should have separate ground planes that eventually connect at some point.
- To reduce noise on the internal reference, a 4.7-µF capacitor is recommended between the REF_CMP and GND.
- A high-quality ceramic type NP0 or X7R is recommended for its optimal performance across temperature, and very low dissipation factor.
11.2 Layout Example

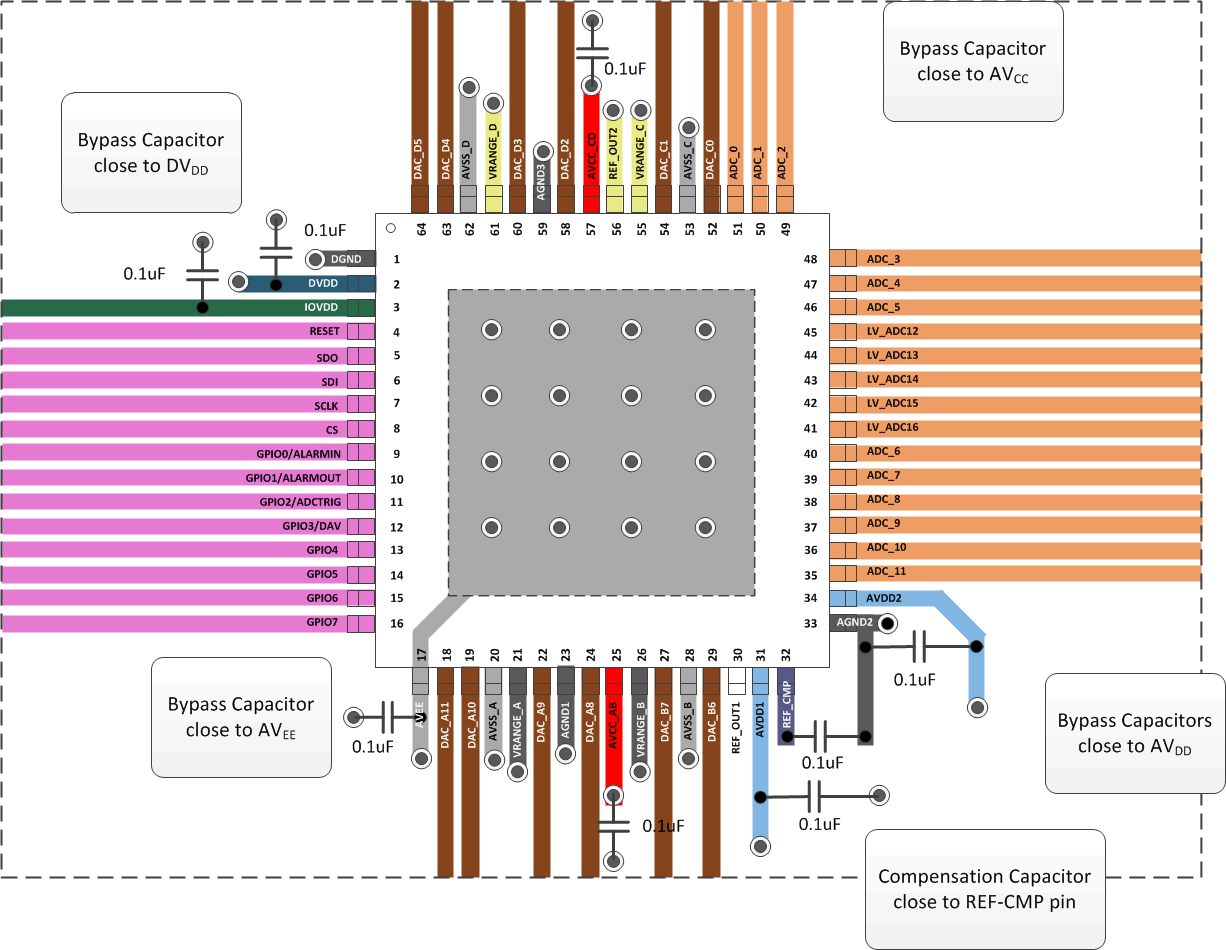

Figure 62. AMC7832 Example Board Layout

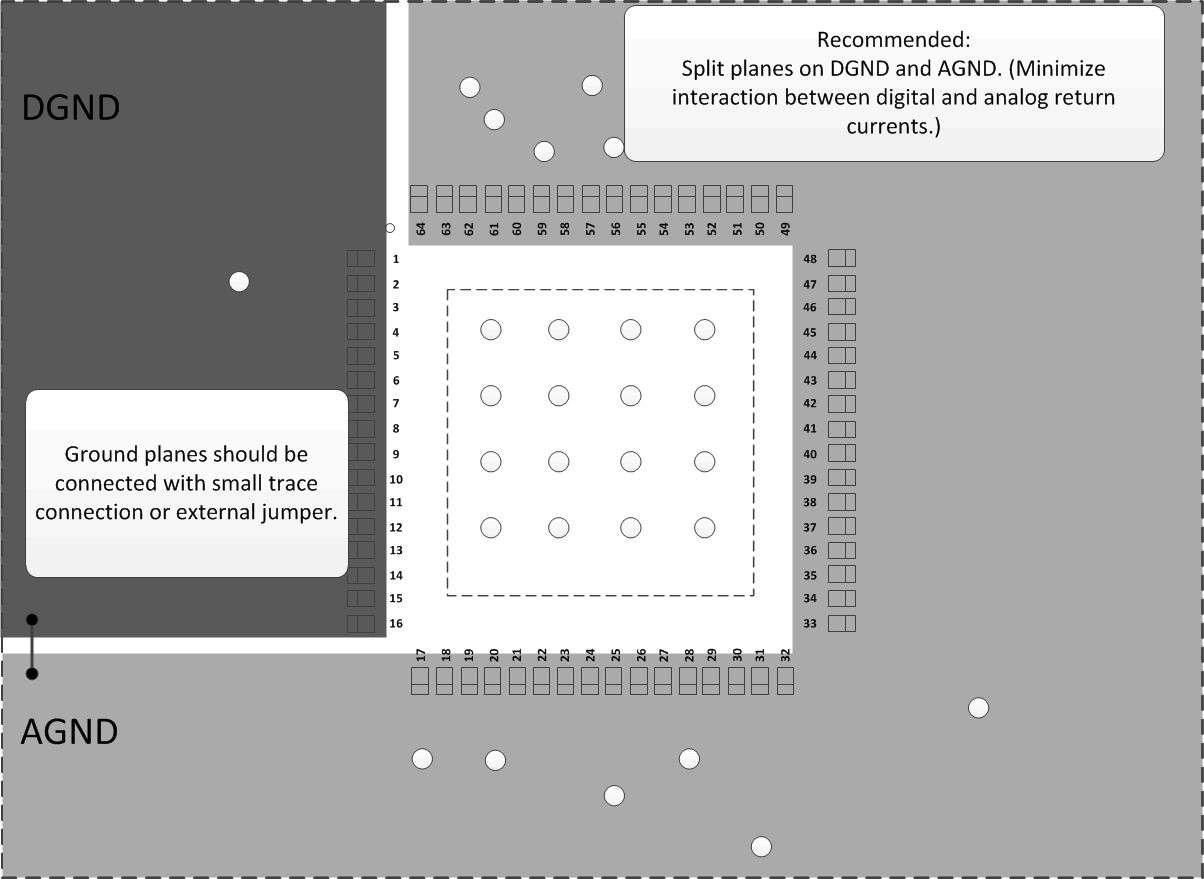

Figure 63. AMC7832 Example Board Layout – Ground Planes

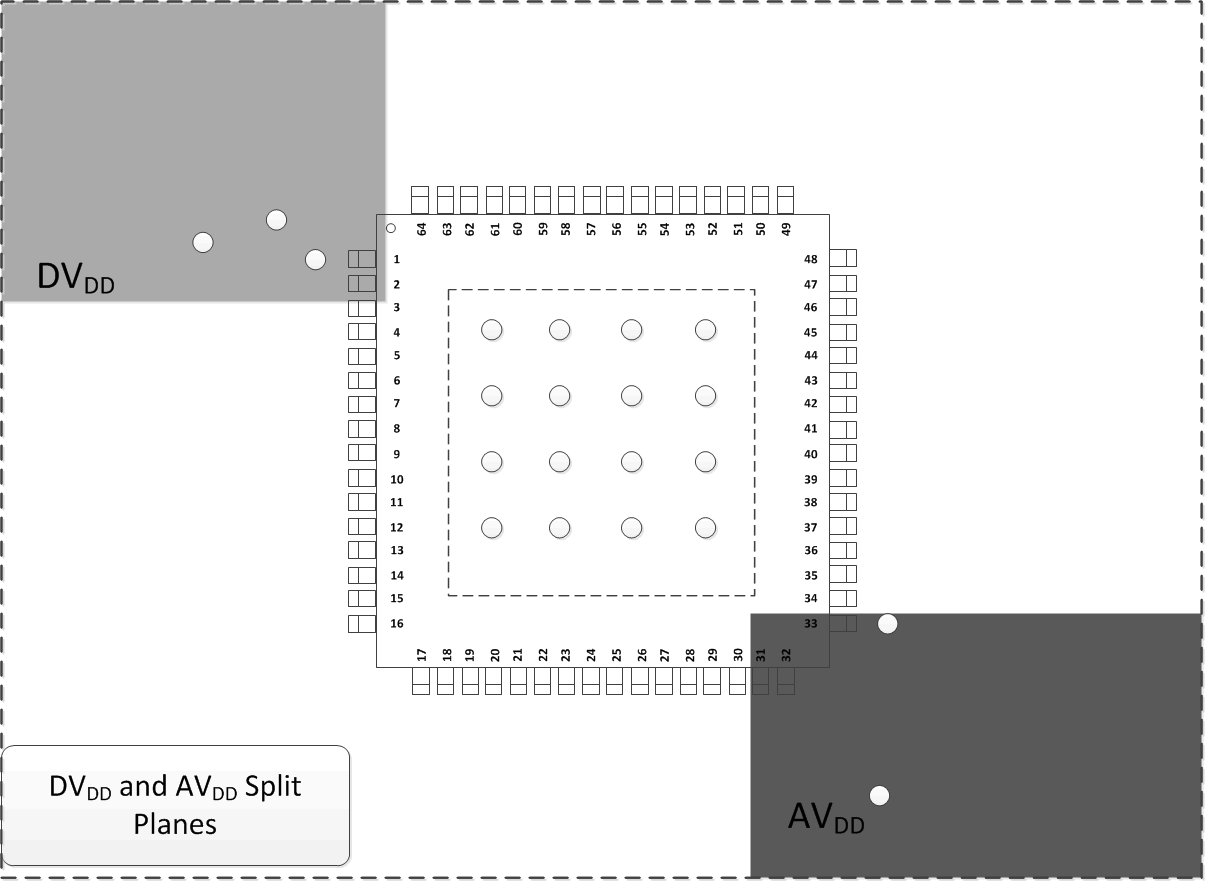

Figure 64. AMC7832 Example Board Layout – Power Planes

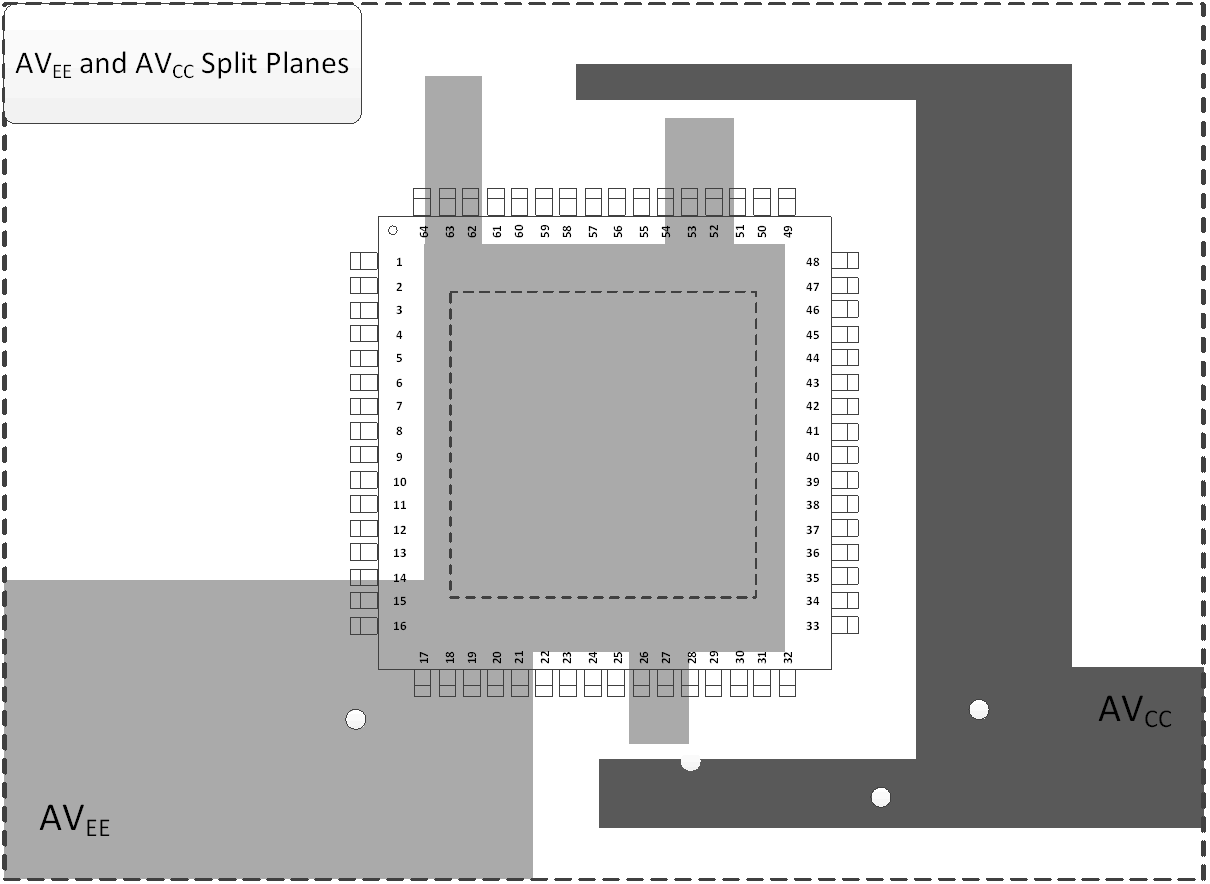

Figure 65. AMC7832 Example Board Layout – Analog Power Planes
