9.3 System Examples

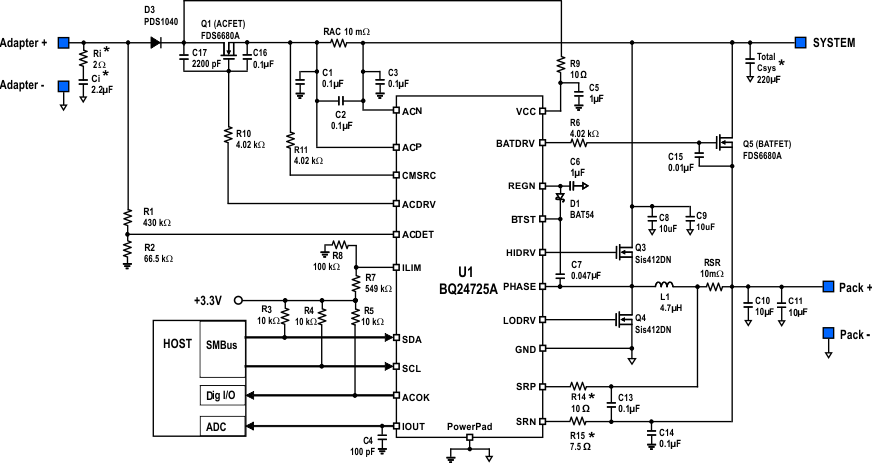

Fs = 750kHz, IADPT = 2.816A, ICHRG = 1.984A, ILIM = 2.54A, VCHRG = 12.592V, 65W adapter and 3S2P battery pack
Use 0Ω for better current sensing accuracy, use 10Ω/7.5Ω resistor for reversely battery connection protection. See application information about negative output voltage protection for hard shorts on battery to ground or battery reversely connection.
The total Csys is the lump sum of system capacitance. It is not required by charger IC. Use Ri and Ci for adapter hot plug in voltage spike damping. See application information about input filter design.
Figure 26. Typical System Schematic with One NMOS Selector and Schottky Diode
Fs = 750kHz, IADPT = 2.048A, ICHRG = 1.984A, ILIM = 2.54A, VCHRG = 4.200V, 12W adapter and 1S2P battery pack
Use 0Ω for better current sensing accuracy, use 10Ω/7.5Ω resistor for reversely battery connection protection. See application information about negative output voltage protection for hard shorts on battery to ground or battery reversely connection.
The total Csys is the lump sum of system capacitance. It is not required by charger IC. Use Din for reverse input protection. See application information about reverse input voltage protection. When using a different Q1 and Q2 that have a lower VGS(TH), a 500-kΩ resistor in parallel with C16 is required.
Figure 27. Typical System Schematic for 5V Input 1S Battery
