9.3.14 3-State Driver Recommendations for the TS/CTRL Pin
The TS/CTRL pin offers three functions with one 3-state driver interface:
- NTC temperature monitoring
- Over-Temperature Fault
- End Power Transfer 0x00 (EPT Unknown)
A 3-state driver can be implemented with the circuit in Figure 9-15 and the use of two GPIO connections. M3 and M4 and both resistors are external components.

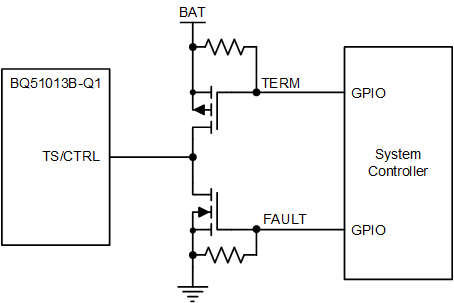

Figure 9-15 3-State
Driver For TS/CTRLNote that the signals TERM and FAULT are given by two GPIOs. The truth table for this circuit is found in Table 9-6:
| TERM | FAULT | F (Result) |
|---|---|---|
| 1 | 0 | High Impedance (Normal Mode) |
| 0 | 0 | End Power Transfer 0x00 |
| 1 | 1 | End Power Transfer 0x03 |
The default setting is TERM / FAULT = 1 / 0. In this condition, the TS-CTRL net is high impedance (high-z) and the NTC function is allowed to operate, normal operation. When TERM / FAULT = 1 /1 the TS-CTRL pin is pulled to GND and the RX is shutdown with End Power Transfer Over Temperature sent to TX. When TERM / FAULT = 0 / 0, the TS-CTRL pin is pulled to the battery and the RX is shutdown with End Power Transfer Unknown sent to the TX.
