10.2.1 BQ51013B-Q1 Wireless Power Receiver Used as a Power Supply
The following application discussion covers the requirements for setting up the BQ51013B-Q1 in a Qi-compliant system for use as a power supply.

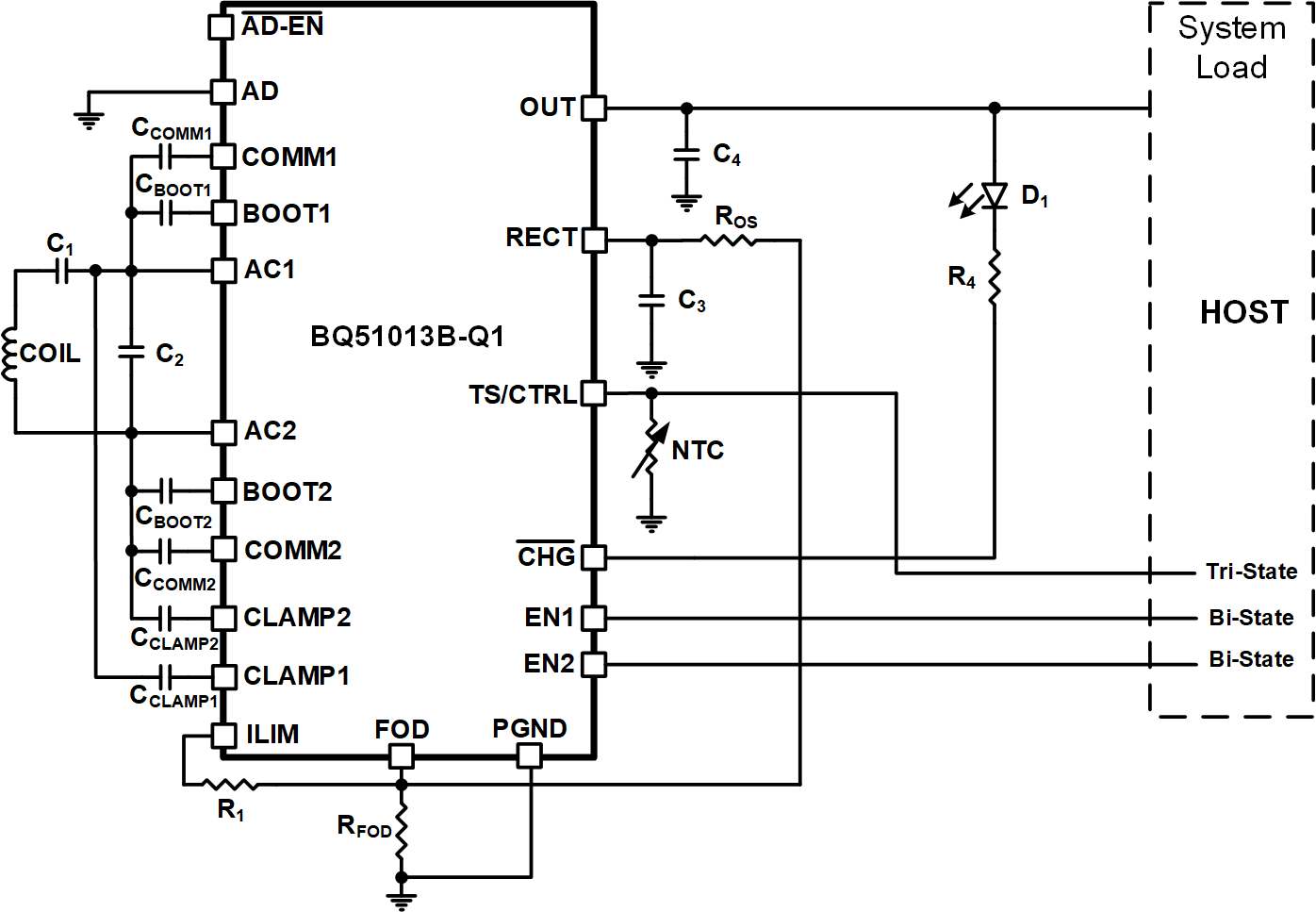

Figure 10-1 BQ51013B-Q1
Used as a Wireless Power Receiver and Power Supply for
System Loads
