8.2.3 Application Curves
| VO = 1.8 V |
| V(VIN) = 3.3 V | f(SW) = 1 MHz | TA = 25°C |

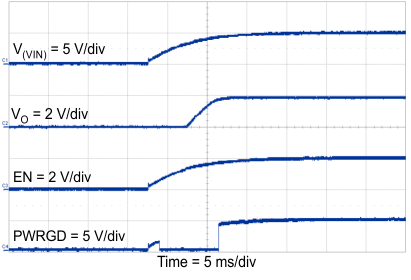

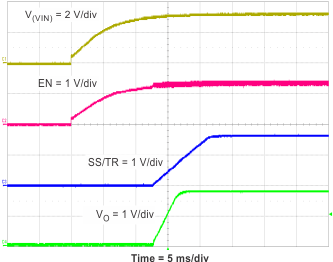

Figure 8-6 Power Up VO, V(VIN)

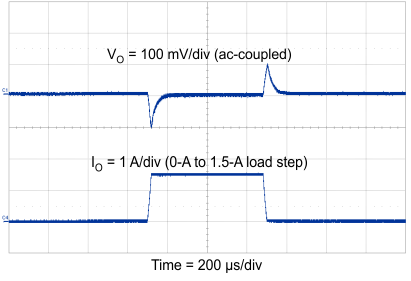

Figure 8-8 Transient Response, 1.5-A Step

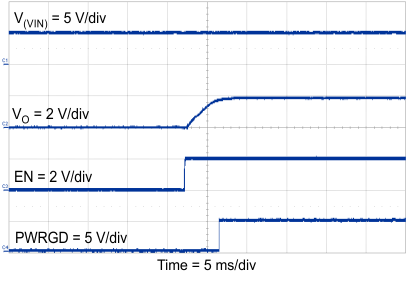

Figure 8-10 Power Up VO, EN

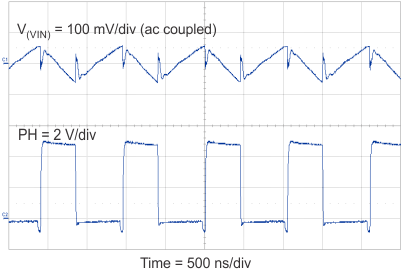

Figure 8-12 Input Ripple, 3 A
| VO = 1.8 V |
| V(VIN) = 5 V | f(SW) = 1 MHz | TA = 25°C |

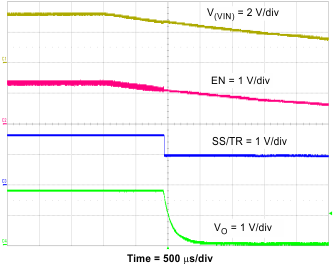

Figure 8-7 Power Down VO, V(VIN)
Figure 8-9 Power Up VO, V(VIN)
Figure 8-11 Output Ripple, 3 A
| V(VIN) = 5 V | IO = 3 A |
| IO = 2 A |
