6.1 Load Circuits
Figure 6-1 Data Rate, Pulse Duration, Propagation Delay, Output Rise-Time and Fall-Time Measurement Using a Push-Pull Driver
Figure 6-2 Data Rate, Pulse Duration, Propagation Delay, Output Rise-Time and Fall-Time Measurement Using an Open-Drain Driver

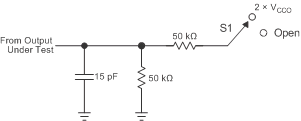

| TEST | S1 | ||
| tPZL / tPLZ (tdis) | 2 × VCCO | ||
| tPHZ / tPZH (ten) | Open | ||
- tPLZ and tPHZ are the same as tdis.
- tPZL and tPZH are the same as ten.
- VCCI is the VCC associated with the input port.
- VCCO is the VCC associated with the output port.
